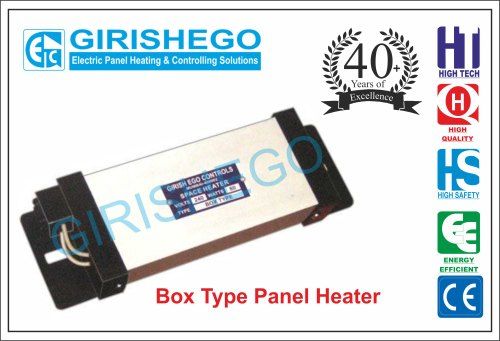

Panel Heater Box Type (Best Switchgear Enclosure Electric Panel Space Heater)

Box Types Space Heaters are ideal for prevention of condensation, corrosion. Leakage currents in L.T. & H.T. Switchgear panel boards / electronic instruments & panels etc.

Working Principle and Features:

The specially developed design incorporates a stainless steel sheathed cartridge heating element in perforated sheet metal enclosure. A black powder coated finish ensures rapid heat dissipation.

A 2 x 2.5 mm porcelain terminal block is provided for electrical connection

Mounting Holes are provided at one side

Each heater is tested for following specific tests. 1) High Voltage Test At 2Kv/1Min 2) Insulation Resistance > 10 Mega Ohms.3) Power Rating within ± 5%

Intended Use:

Prevention of condensation, corrosion, Leakage currents in L.T. & H.T. Switchgear panel boards / electronic instruments & panels etc.

Installation:

Two Holes of Ø7mm are provided for mounting on one side of the heater. Installation can be done in vertical or horizontal position although horizontal mounting is preferred. Distance from surface of panel should be at least 10 mm. and distance from plastic parts should be at least 50 mm.

Also available in complete Aluminium with Aluminium Fixing cover / Bracket

Additional Information:

Packaging Details: Box Packing
